C 15M

15” power stage monitor.

When power alone is not enough but also necessary.

 •   Transducers
 LF: 15" ND cone 4" voice-coil

 HF: 3" Aluminium Diaphragm

 •   SPL max
 139dB

 •   Cross-over
 Passive

 (optional passive/active switchable)

 •   Dispersion
 Rotable: 60° x 40°

 •   Bandwidth
 58-19.000Hz ±3dB

 •   Weight
 35kg | 77.0 lbs

Anyone familiar with large and loud stages knows that sometimes you need a monitor that can cut through all that loud sound energie. The C 15M is the tool for projecting information very clearly even then.

The perfectly matched woofer and HF-range driver/CD-horn combination gives the C 15M a true point source experience. The impulse behaviour is phenomenal across the entire bandwidth and the linearity in frequency is also very balanced.

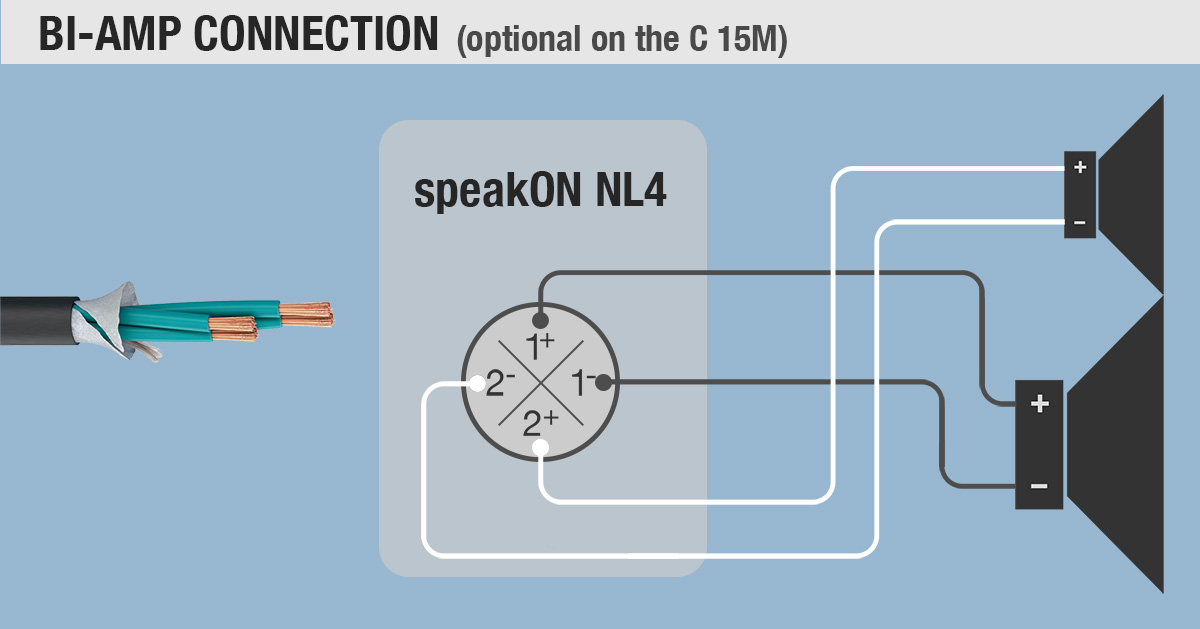

To get the most out of the performance, we recommend distributing a maximum of 8 pieces C 12M across the 4 channels of the TA 4D. For discerning ears and certainly recommended by us is the 2-way active use on the TA 4D's 2 Bi-amp channels.

As standard, the C15 M is sold as a passive loudspeaker, but optional is the function that allows switching between passive and active use.

C 15M Specifications.


    Specifications
    C 15M unpowered

    Frequency response
    58 - 19.000Hz ±3dB

    Max. SPL (1m, free field)
    139dB

    Nominal dispersion - Rotable
    60° x 40°

    Coaxial Transducer
    LF: One 15" ND cone 4" voice-coil

    HF: One 3" Aluminium diaphragm compression driver

    Acoustic Principle
      LF: Bass-reflex

    HF: CD horn

    Power handling AES RMS/peak
      LF: 1000W / 2000W

      HF: 100W / 200W

    Crossover
      Passive (optional passive/active switchable

    Nominal impedance
      LF: 8 Ω

      HF: 8 Ω

    Connectors
    Two speakON NL4

    Dimensions (H x W x D)
    405 x 670 x 534 mm

    15.9 x 26.3 x 20.9”

    Weight
    35.0 kg

        77.0 lb
