The smartest PoE loudspeaker.
PoE++, AoIP, DANTE™, FIRTEC™, DSP, Remote controlled, VALTEC™, HDSP™, Cardioid, 480Watt
Our Statement.

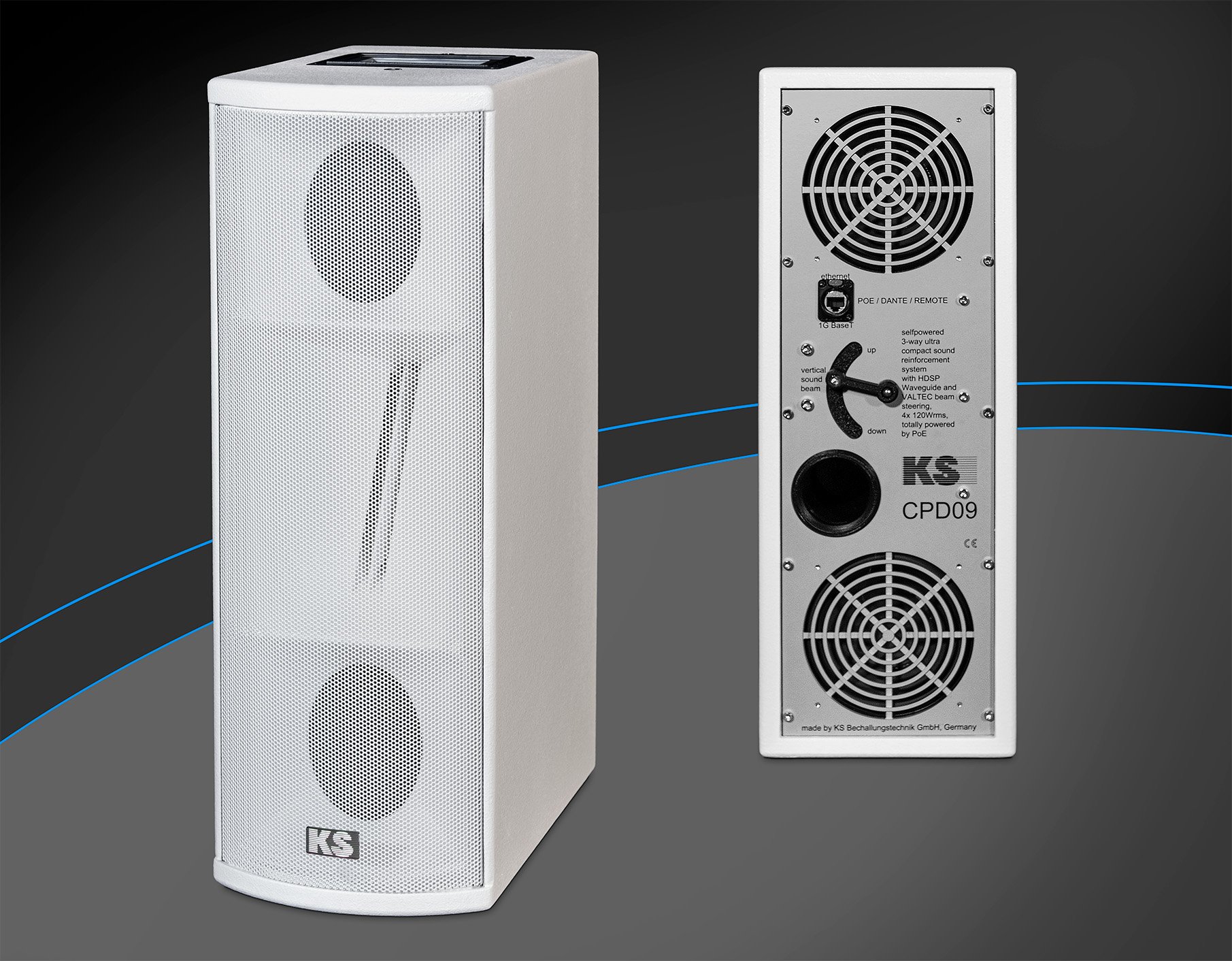

With the CPD 09, KS AUDIO and Innosonix set a new standard:
CPD 09 PoE++ loudspeakers can not only outperform extremely expensive high-end systems in sound quality — they also offer precision-controlled and variable dispersion, remarkable high output, and seamless integration.
All of this delivered through one simple Ethernet cable.
PoE is no longer a compromise.
PoE++ (Power over Ethernet).
The CPD 09 receives its power (PoE++), audio signal (AoIP), and remote control data (Ethernet) — all through a single network cable.
This significantly reduces cabling requirements and saves space, especially in network racks or remote corners of a building. As a result, installation and deployment costs are also lower.
Traditionally, network cables have been used primarily for data transmission and are not designed to carry high currents. This meant that PoE++ could previously only power low-consumption network devices such as phones or access points. However, with the introduction of PoE++ (IEEE 802.3bt), it has become possible to transmit significantly more Power over Ethernet, enough to supply energy-hungry devices.
With the development of the CPD 09 PoE++ amplifier, Innosonix engineers have taken a major step forward. They have succeeded not only in creating an exceptionally powerful amplifier, but one with enormous power reserves, capable of reproducing complex, dynamic audio signals with full detail and stability — even over extended periods of operation.
The result has to be heard to be believed.
ACOUSTIC SPECIFICATIONS.
Frequency response
68 - 19.000Hz +-2dB
LOW CUT (via DSP)
OFF / 70 / 120Hz
Max. SPL - 1m. free field
128dB
Nominal horizontal dispersion
120° nearfield down to 60° into the farfield
Nominal vertical dispersion
35° with 5° down-angle

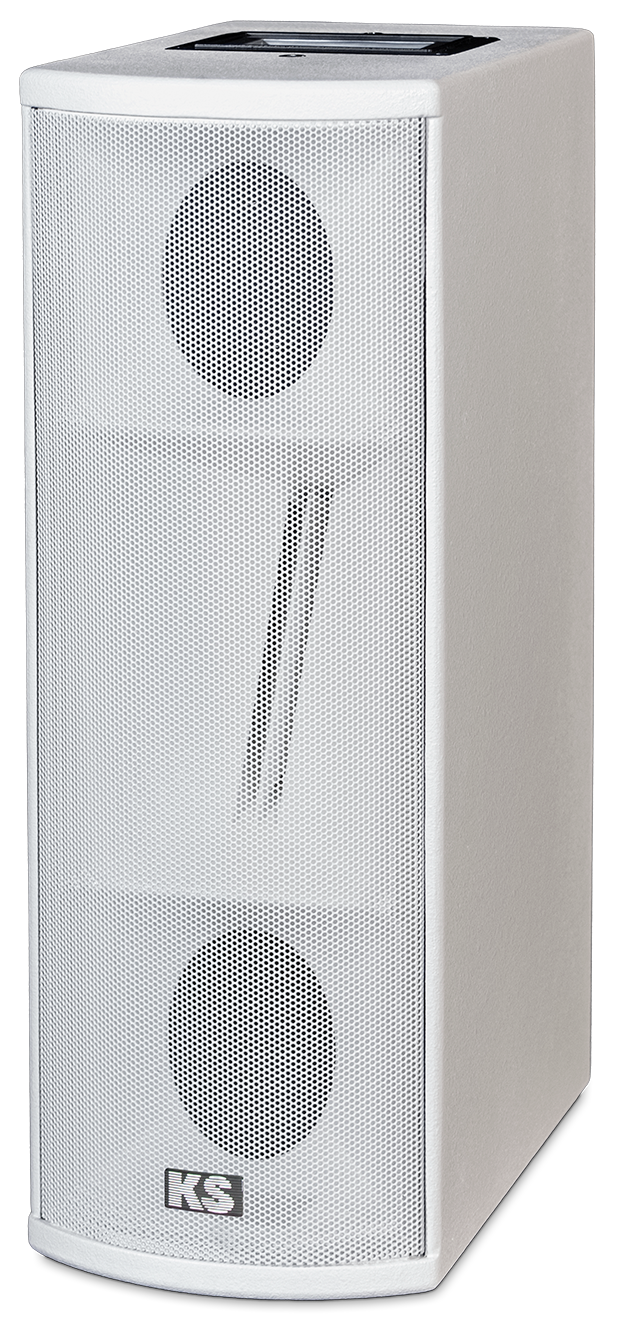

Transducers
LF: four 5" ND cone
HF: one 1.75" diaphragm / 1.0" throat ND compression driver
Acoustic Principle
LF: bass-reflex and cardioid
HF: HDSP™ High Definition Sound Projector / VALTEC™ Beamsteering
ELECTRONIC SPECIFICATIONS.
Output Power Standard 1kHz 1% THD
LF front: 240W
LF back: 120W
HF: 120W
Frequency response
10Hz-20kHz +- 0.0 - 0.1dB
S/N typ
108dBA
Protection
Overtemperature, DC and Overcurrent
DSP Architecture
ARM based 32/64-bit floating point

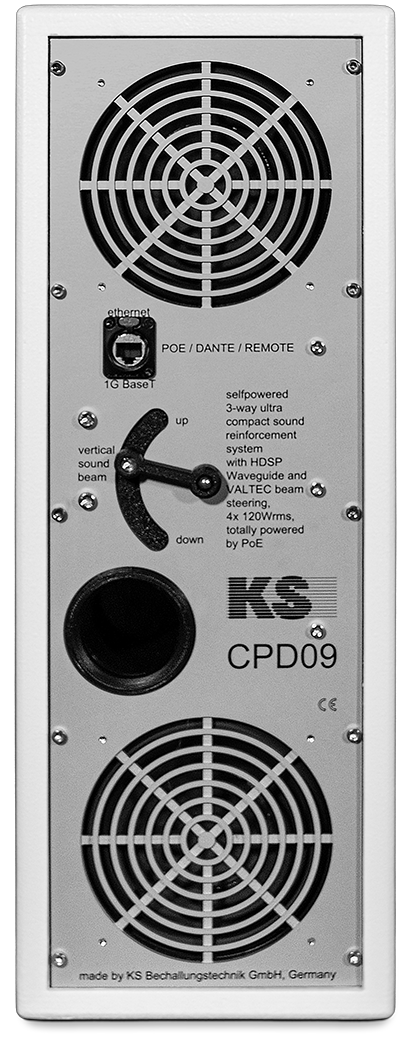

INPUT
Audio
Ethernet RJ-45 / DANTE™ AoIP
Latency
3.04ms @44.1kHz / 2.8ms @48kHz
Network
100Mbit/s Ethernet + PoE
Level Control
Mute, Volume, Phase via MAXX REMOTE and CONTROL software
Filter per channel / Filter types
32 x EQ / Highpass / Lowpass - bell, notch, highshelf, lowshelf, allpass 1th / 2nd order
Power supply
Isolated switch mode with constant current draw based on PoE++ Class
Recommend Cable
AWG23 - CAT5e to CAT7
Software
MAXX REMOTE + MAXX CONTROL by INNOSONIX GmbH
Accessories
Fliphandle, 36mm Standflange, All RAL colors, All kinds of brackets and mounting
DIMENSIONS & WEIGHT.
View all the information about CPD 09 in our comprehensive brochure.
