CPD 1214
“Loud and clear - powered.”
CPD 1214 Specifications.
| Specifications | CPD 1214 powered |
| Frequency response | 120 - 19.000Hz ±3dB (50Hz -10dB) |
| Low cut modes | OFF / 70 / 120Hz |
| Max. SPL (1m, free field) | 138dB |
| Nominal horizontal dispersion | 60° Long Throw |
| Nominal vertical dispersion | 40° Long Throw |
| Transducers | LF: one 12" ND cone 4" voice-coil |
| HF: one 3" aluminium diaphragm 1.4" throat compression driver | |
| Acoustic Principle | LF: Horn-loaded |
| HF: Horn-loaded | |
| Power handling AES RMS/peak | LF: 500W / 1000W |
| HF: 100W / 200W | |
| Amplifier | Integrated, 1x PWM low-mid / 1x MOSFET mid-high - 750Wrms |
| Power Supply | SMPS (Switched Mode Power Supply) with power factor correction (PFC) |
| DSP | 32-bit, floating point, 192 kHz Sampling frequency |
| Filter Technology | IIR and FIR filters, delay adjustments, contour filters |
| Power input | powerCON in/out 110-240V 50-60Hz |
| Signal input | XLR3-F and XLR3-M Analog/AES-EBU autoswitch |
| RJ45 Ethernet 1G T Base for Dante™ and KS AUDIO Remote Control | |
| - Dante™ optional! - | |
| Weight | 45.0 kg |
| 99 lb |
Applications.
High demand Portable sound reinforcement
Small-to-medium live music venues
Mobile DJ’s
Medium to large dance clubs
Fixed installations in concert halls, ballrooms and Houses of Worship
Related products.

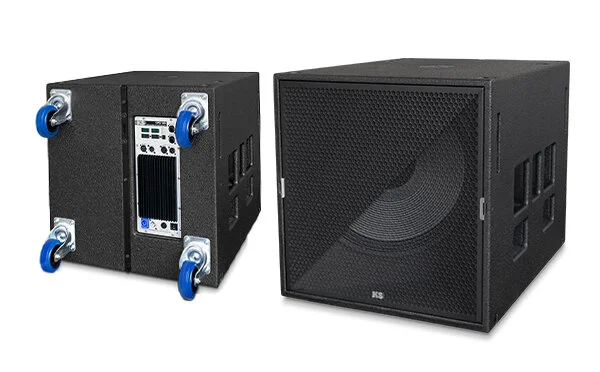

CPD WH - Powered single 18” Hybride Subwoofer
