CPD 12M
Powered 12” coaxial stage monitor.
Powered 12” Coaxial precision.
| • Coaxial transducer | LF: 12" ND cone 4" voice-coil | |
| HF: 3" Diaphragm | ||
| • SPL max | 135dB | |
| • Integrated electronics | 2-channel amplifier with FIRTEC™ DSP | |
| • Dispersion | Coaxial: 60° | |
| • Bandwidth | 70-19.000Hz ±3dB | |
| • Weight | 25kg | 55.0 lbs |
When you need the best sound in a small package, this powered CPD 12M coaxial combination of 12" cone and 1.4" driver is unsurpassed. The dispersion behaviour is ideal for use as a stage monitor. The 60° coaxial dispersion is very even and minimises feedback without loss of control.
The 2-way controller amplifier built in at the rear of the CPD 12M works with a very high efficiency. Furthermore, the use of FIR filters in the DSP controller achieves complete level and phase linearity - this guarantees the most natural intelligibility - pure! Two integrated amplifiers provide 500W continuous power to the 12" chassis and 100W to the 1.4" driver - the peak power is 1200W!
CPD 12M Specifications.
| Specifications | CPD 12M powered |
| Frequency response | 70 - 19.000Hz ±3dB |
| Max. SPL (1m, free field) | 135dB |
| Nominal dispersion - Coaxial | 60° |
| Coaxial Transducer | LF: One 12" ND cone 4" voice-coil |
| HF: One 3" Diaphragm compression driver | |
| Acoustic Principle | LF: Bass-reflex |
| HF: Coaxial horn | |
| Power handling AES RMS/peak | LF: 400W / 800W |
| HF: 90W / 180W | |
| Amplifier | Integrated, 2 powerstages: 1x PWM 1x MOSFET |
| Power Supply | SMPS (Switched Mode Power Supply) with power factor correction (PFC) |
| DSP | 32-bit, floating point, 192 kHz Sampling frequency |
| Filter Technology | IIR and FIR filters, delay adjustments, contour filters |
| Power input | powerCON in/out 110-240V 50-60Hz |
| Signal input | XLR3-F and XLR3-M Analog/AES-EBU autoswitch |
| RJ45 Ethernet 1G T Base for Dante™ and KS AUDIO Remote Control | |
| - Dante™ optional! - | |
| Dimensions (H x W x D) | 350 x 576 x 412 mm |
| 13.7 x 22.6 x 16.2” | |
| Weight | 25.0 kg |
| 55.0 lb |
Applications.
If only the best is good enough
Powered coaxial high definition floormonitor
Related products.

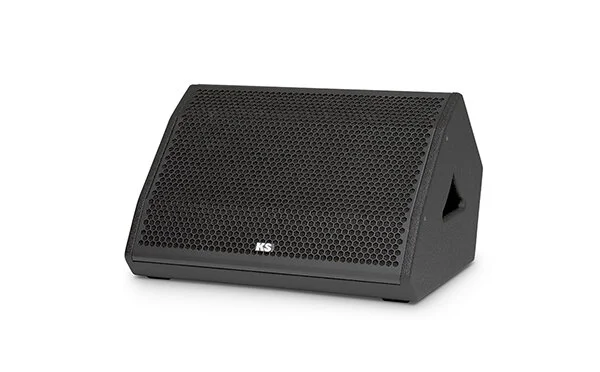

C 12M - Coaxial precision 12” / 2.85” floormonitor
