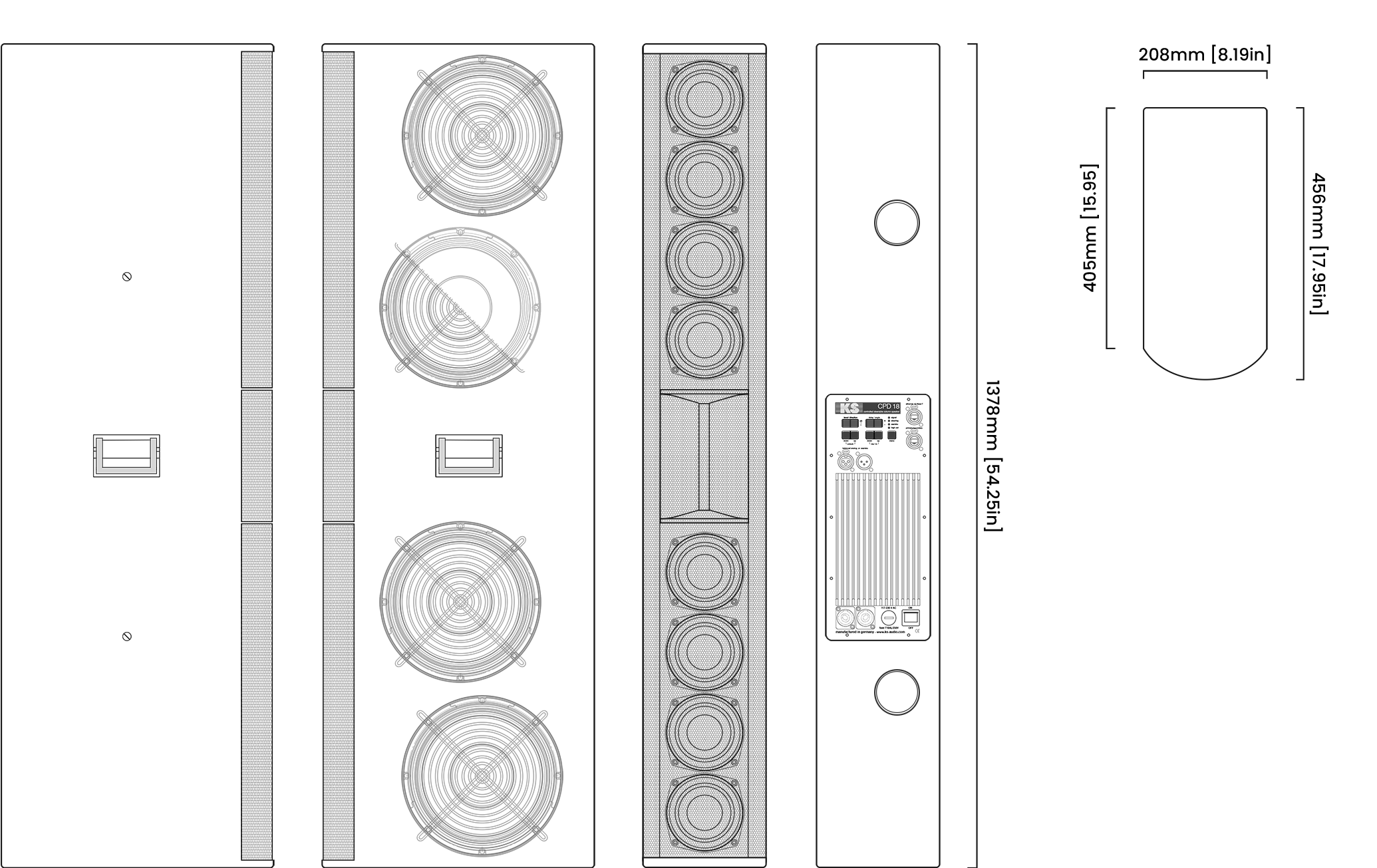

CPD 18
“Unique vertical beam-steering
and audiophile sound.”
CPD 18 Specifications.
| Specifications | CPD 18 powered |
| Frequency response | 38 - 20.000Hz ±3dB |
| LOW CUT Modes | 70 / 120Hz |
| Max. SPL (1m, free field) | 134dB |
| Nominal horizontal dispersion | 120° |
| Nominal vertical dispersion | VALTEC™ 0°-30° variable with beam-steering, configurable via software menu. Max. up- and downangle: 30° |
| Transducers | LF: Four 10" ND cone |
| Transducers | MF: Eight 5" ND cone" |
| HF: 1.75" ND Ring diaphragm line emitter with VALTEC™ | |
| Acoustic Principle | LF: Bass-reflex with electronic beam-steering |
| MF: Vertical array with electronic beam-steering | |
| HF: Wavefront optimized line emitter with VALTEC™ beam-steering | |
| Power handling AES RMS/peak | LF: 1000W / 2000W |
| MF: 500W / 1000W | |
| HF: 100W / 200W | |
| Amplifier | Integrated, 7 powerstages: 6x PWM 1x MOSFET - 1500Wrms |
| Power Supply | SMPS (Switched Mode Power Supply) with power factor correction (PFC) |
| Multi-channel DSP | 32-bit, floating point, 192 kHz Sampling frequency |
| Filter Technology | IIR and FIR filters, delay adjustments, contour filters, time allignment |
| Power input | powerCON in/out 110-240V 50-60Hz |
| Signal input | XLR3-F and XLR3-M Analog/AES-EBU autoswitch |
| RJ45 Ethernet 1G T Base for Dante™ and KS AUDIO Remote Control | |
| - Dante™ optional! - | |
| Weight | 51.0 kg |
| 112.2 lb |
Applications.
When only the best is good enough
All scale theatres and opera houses
Small live music venues
Corporate AV events
Fixed installations in concert halls, ballrooms and Houses of Worship
Media & board rooms
Trade shows
