P LINE
“The Power Line Array.”
P LINE Specifications.
| Specifications | P LINE unpowered |
| Frequency response | 60 - 20.000Hz ±3dB |
| F MOD / D MOD low cut modes | OFF / 70 / 100 / 120Hz |
| Max. SPL (1m, free field) with TA 4D | 142dB - single element |
| Nominal horizontal dispersion | 90° |
| Nominal vertical dispersion | 5° |
| Transducers | LF: Two 10” Neodymium Cone |
| HF: Two 1.75" Ring diaphragm compression drivers | |
| Power handling AES RMS/peak | LF: 1000W / 2000W |
| HF: 160W / 900W | |
| Acoustic Principle | LF: Bass-reflex |
| HF: CPC (Constant Phase Sculpture) waveguide | |
| Nominal impedance | LF: 4 Ω |
| HF: 8 Ω | |
| Splay angle increments | 0°, 2,5°, 5°, 7.5°, 10° Optional 0° - 10° in 0.5° increments |
| Connectors | Two speakON NL4 |
| Weight | 30 kg |
| 66 lb |
Applications
Small to medium scale touring and concerts
Medium to large scale Houses of Worship
Medium to large scale clubs and ballrooms
Nearfield downfill for T LINE and U LINE
Related products.
TA 4D - 4 Channel FIRTEC™ DSP controlled amplifier
C WH - Single 18” Hybrid Subwoofer
T SUB - Eight 10” Band-pass infra Subwoofer

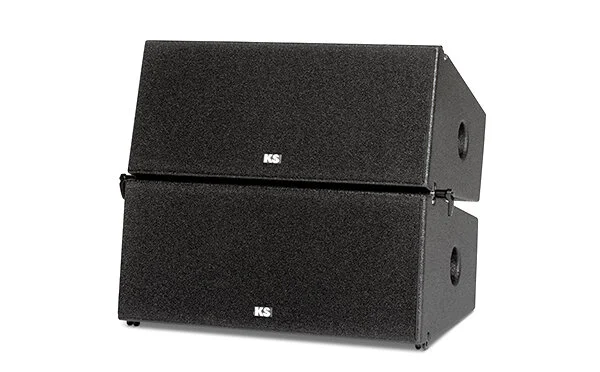

VC LINE - Double 8” and single 1.75” Line Array with VALTEC™
