SAT 3

SAT 3 - there´s nothing like the original!

One of the most successful systems by KS AUDIO is the SAT 3– a concept which has been developed more than 30 years ago, was often copied and nowadays represents the embodiment of a small PA with active mono-subwoofer. For all users who are looking for the sound of a good HiFi system, who need the transmission audibility of a PA and whose audience mainly consists of a few hundred people we have now created the new SAT 3 – a dream come true!

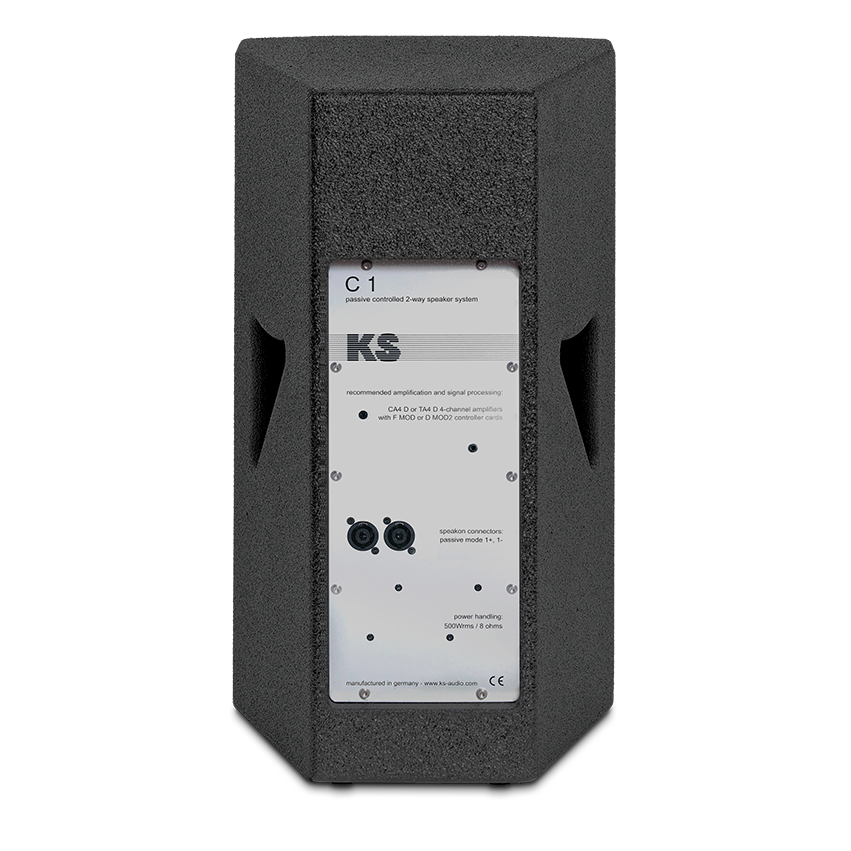

C 1 full-range.

The tops are the C 1, passive systems which are unique sound rein­force­ment systems for speech and music with regard to their compact­ness and trans­mission quality. Due to the HDSP-principle the driver/horn combination offers (under all angles an equally) good frequency response up to 19kHz. The 10" low-mid woofer is equipped with an extremely strong ND-drive and provides a high load capacity of the 3" voice coil. The enclosure is made of PU-coated multiplex boards with stand flange, threads, protective grating, molded recesses and large ventilation ports. In/out speakON NL4.

CB 18 subwoofer.

The active subwoofer of the SAT 3 is the CB 18, a vented design with an 18" ND chassis with a 4" voice coil. The 1200W chassis offers a completely distortion-free transmission even of sublows.
The 2000Wrms DSP controller amplifier is recessed into the woofer cabinet in such a way as to create an easily accessible sloping front plate without protruding controls and to ensure unhindered cooling of the three power amplifiers. KS has thus responded to the request of many users to dispense with active cooling and thus avoid annoying fan noise.

Similar to all KS systems the enclosure is made of birch multiplex boards, which is unsusceptible to mechanical and chemical impacts. Moulded recesses, a stand flange with M20 thread, stacking feet, protective grating and optionally a transport protection cover with rolls are further features of this premium product.

All colors and shapes available.
