CPD LINE

“Compact & Powered Line Array.”



CPD LINE specifications

Specifications CPD LINE powered


Frequency response 60 - 20.000Hz ±3dB
   Available low-cut modes OFF / 70 / 120Hz


Max. SPL 137dB - single element


Nominal horizontal dispersion 120°


Nominal vertical dispersion 7.5° - optional 15°


Drivers LF: Two 8” Neodymium Cone
  HF: One 1.75" Ring diaphragm compression driver


Power handling AES RMS/peak LF: 500W / 1000W
  HF: 100W / 200W


Acoustic principle LF: Bass-reflex
  HF: CPC (Constant Phase Sculpture) waveguide


Amplifier 1x PWM low-mid and 1x MOSFET mid-high - 500Wrms
   Power Supply SMPS (Switched Mode Power Supply) with power factor correction (PFC)
   DSP 32-bit, floating point, 192 kHz Sampling frequency
   Filter Technology IIR and FIR filters, delay adjustments, contour filters and array presets


Splay angle increments 0, 1 … 15°

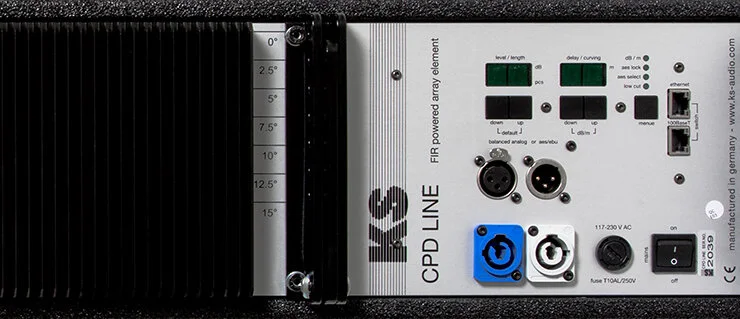

Power input powerCON in/out 110-240V 50-60Hz
Signal input XLR3-F and XLR3-M Analog/AES-EBU autoswitch
  RJ45 Ethernet 1G T Base for Dante™ and KS AUDIO Remote Control
  - Dante™ optional! -


Weight 19 kg
  42 lb


Very easy to create a solid and safe groundstack.

Even eassier to fly.

Applications



Small-to-medium scale theatres

Small-to-medium live music venues

Corporate AV events

Fixed installations in concert halls, ballrooms and Houses of Worship
