P WK
“Cardioid subwoofer.”
P WK specifications.
| Specifications | P WK unpowered |
| Frequency response | 38 - 120Hz ±3dB |
| 32 - 120Hz ±6dB | |
| F MOD and D MOD hi-cut modes | 70Hz | 100Hz | 120Hz |
| Max. SPL | 138dB |
| Nominal impedance | Front 8 Ω | Rear 8 Ω |
| Directivity | Omni directional - Cardioid |
| Transducers | Two 15” Cone 4" Voice-coil |
| Power handling AES RMS/peak | 2400W / 4800W |
| Acoustical Principal | Cardioid |

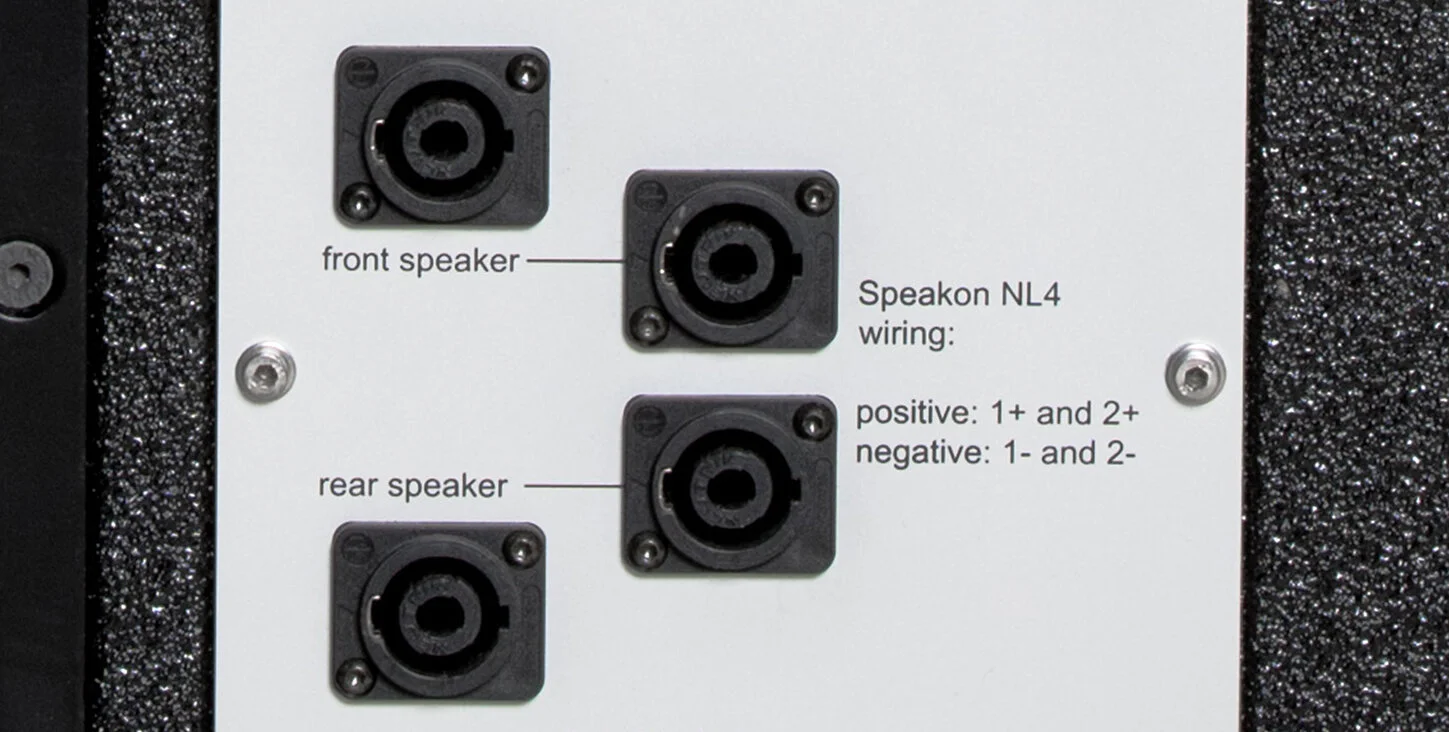

| Connectors | speakON NL4 in/out |
| Weight | 59 kg |
| 130 lb |
Applications
Small to medium scale touring and concerts
Medium to large scale Houses of Worship
Medium to large scale clubs and ballrooms
Related products.

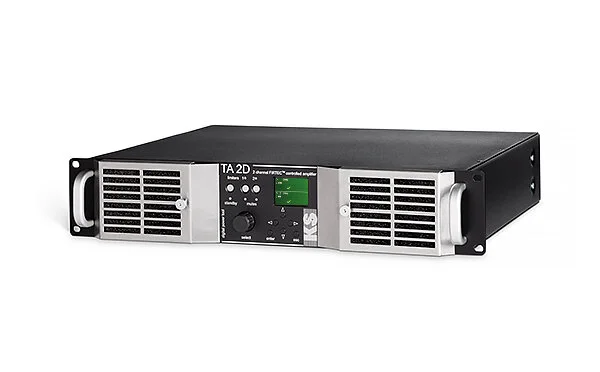

TA 2D - 2 Channel FIRTEC™ DSP controlled amplifier
